It is the mode which performs the input and edit of
an event using a graphic editor. ([MODE]+PAD15)Note
A sequence cannot be changed during a play.
| GRID EDIT (DRUM) |
It is the mode which performs the input and edit of
an event using a graphic editor. ([MODE]+PAD15)
Note
A sequence cannot be changed during a play.

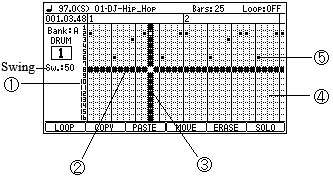

| 1 | Pad number |
| 2 | Horizontal marker |
| 3 | Vertical marker |
| 4 | Event field |
| 5 | Pad event |
F1 (LOOP) has the same specifications as the loop on the main screen. |
| You can move the cursor to
each field with the cursor buttons. Movement of a bar can be performed by the BAR button. It can move quickly by a BAR + DATA wheel. Vertical marker is moved to the event of the next or previous by a STEP button. Regardless of the value of timing correct, a vertical marker 1 tick moves by [SHIFT] + DATA wheel. Change of a track can be performed in a [MODE] + DATA wheel. Swing is not effective against the recorded event. The move interval of the vertical marker in a standard display (2 bars displays) Refer to video. Usually, if a DATA wheel is turned, regardless of the value of timing correct, it will move at intervals of 24 ticks. If a DATA wheel is turned pressing the [NOTE REPEAT] button, it will move at the following intervals with the value of timing correct. |
|
| 1/8 = 48 ticks | |
| 1/8-3 = 32 ticks | |
| 1/16 = 24 ticks | |
| 1/16-3 = 16 ticks | |
| 1/32 = 12 ticks | |
| 1/32-3 = 8 ticks | |
| OFF = 1 tick |
Please refer to "Tracks
Edit Mode" for [SHIFT] + F1 (TR
EDIT).
It is [SHIFT] + F5 (Zoom Out) button and
is zoom out.
It is [SHIFT] + F6 (Zoom In) button and
is zoom-in.
The sample assigned to the pad by [SHIFT] + F3 (SAMPLE) button is
displayed.
If [SHIFT]+F3 (SAMPLE) button is pressed once again, a screen
will return.
If the
cursor button
is pressed, cursor will move to the sample field.
If the [SHIFT] +
cursor button is pressed, cursor will move to the program field.
When a program is INST, it is displayed as shown in the above
figure.
If [SHIFT]+F2 (ALL PAD) button is pressed, it will become all
pads mode.
If cursor is moved to the bar field, a
bar is movable with a DATA wheel. (Except time signature 4/4, it does not work correctly)
 If the [WINDOW] button is pressed when cursor is in the event field, the window of "GRID Options" will open.  |
| Step sound: | If you select ON, the event of a marker position will be sounded when a marker passes. |
| Auto step increment: | If you select YES, after inputting an event by the pad, a vertical marker moves to the right automatically. |
| Duration: | AS PLAYED: The length which is pushing
the pad is inputted into the value of duration. TC VALUE: Regardless of the length which is pushing the pad, a fixed value is inputted according to the value of timing correct. |
| Horizontal grid: | If it turns OFF, the horizontal line of a grid will be erased. |
Screen of Horizontal grid:OFF
Please refer to
"movement of pad
events" for F2 (PadMove).
Note: The type of a track cannot be changed during playback or
recording.
